Marinha Portuguesa / Re: Substituição das Fragatas Classe Vasco da Gama
« Última mensagem por dc em Hoje às 03:14:53 pm »No link que enviei escreveram:Citar"I know the Marina Militare did have MBDA look into fitting multipacks of CAMM-ER into Sylver A50 circa 2014-16, and dual-packs are what were possible. This is why if you go back to a lot of the early information around the naval units of the legge navale 2014/15 (the PPA and Trieste), you will see comments about having 16x A50 VLS for '16 Aster or 32 CAMM-ER'. The Marina Militare ultimately never went ahead with procuring CAMM-ER and so nothing more happened on this front.
With CAMM and quad-packs into Sylver - I am not familiar with any navy actually asking for such a study, though MBDA did claim on older promotional material that quad-packs of CAMM into Mk.41 and Sylver would be possible. (...) More recent material has stopped repeating this claim:

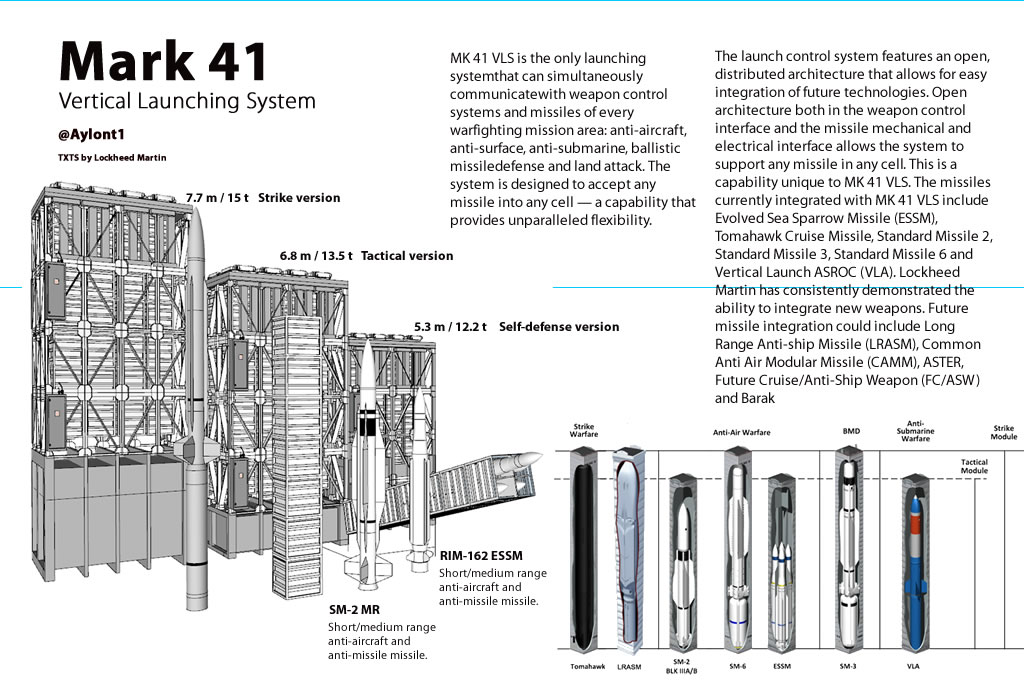

In the maritime environment, CAMM has a number of launcher options. Mk 41 compatible, CAMM can be quadpacked into each cell of either Strike or Tactical length launchers. If space is at a premium or for smaller vessels, CAMM can also be quadpacked into the compact Extensible Launcher System (ExLS), which is part of the Mk 41 family.
Note that ExLS is the means for quad-packing CAMM in Mk.41. There is both the 3-cell ExLS module, which is based on the Mk.41 system and co-developed between Lockheed Martin and MBDA UK, and the Host ExLS inserts that go into tactical and strike-length Mk.41.
---
Truth be told, I suspect that CAMM would require some kind of additional adapter to use CAMM (cold launch) from Sylver (hot launch system), just as is the case with Mk.41. Sylver is however significantly narrower than Mk.41 - 56 x 56cm versus 63.8 x 63.8 cm - and it may simply be unable to fit such a system while still accommodating four CAMM canisters. Quad-packing CAMM into Sylver A50 may simply have never been possible, and MBDA comments about quad-packing CAMM into Sylver may have just been marketing assumptions without any real analysis backing them. This would not be the first time this has happened - MBDA also talked about being able to fire Aster SAMs from the Sylver A70 VLS but that is not possible with the currently fielded A70 VLS."
Lá está, não há evidências de que de facto seria possível.
Eu escrevi:Citar...dois módulos Sylver A50 (8x2) para os Aster 30 e 4 módulos ExLS para os CAMM/CAMM ER. Com isso teríamos 16 misseis Aster 30 e 48 misseis CAMM/CAMM ER.
Eu sei o que tu escreveste. Mas se a MGP tem realmente intenção de ter mais tarde capacidade de lançar os MdCN das fragatas, estas precisam de ter os A70.
